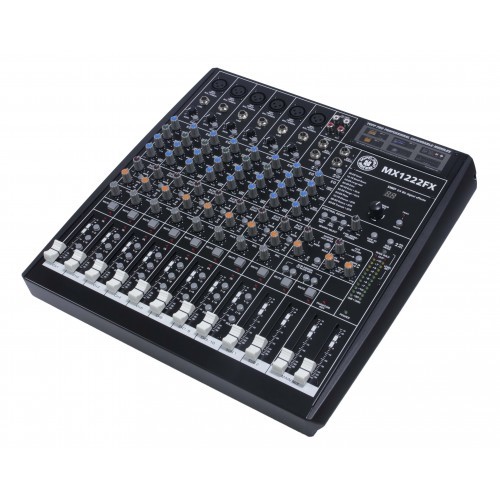

Topp Pro MX1222 FX pasivna mikseta

45.000,00 rsd

Povremeno na Lageru

Pitajte nas o proizvodu

Opis

Topp Pro MX1222 FX pasivna mikseta sa 6 mikrofonskih ulaza.

Topp Pro je Italijanska firma koja je novija na našem tržištu i u odnosu cene i kvaliteta proizvoda veoma povoljna i kvalitetna.

Specifikacija :

12 channel audio mixer with EFX processor

6 mono inputs with gold plated XLR and Balanced TRS jack

Stereo inputs with Balanced TRS jack

3 band EQ with parametric mid-frequencies on all mono inputs and 75 Hz lo cut

2 Aux sends (Aux 1 Pre-Post switchable)

Mute, Solo, 2-Track, Control Room, Phantom 48V functions

2 Subgroups

24 bits interni EFX procesor

12 Faders

Slot za MP3 module (TP TACMP3T-TP TACMP3R)

Inputs Channel

Microphone Input	Electronically Balanced XLR Balanced
Frequency Response	20Hz to 50KHz± 3dB
Distortion (THD & N}	<0.005% to +4dBu, 1 KHz
Gain Range	OdBaSOdB MIC
SNR (Signal to Noise Ratio}	<-100dB
Phantom Power	+48V with switch
Line Input	Electronically Balanced 1/4" TRS
Frequency Response	20Hz to 50KHz ±3dB
Distortion	<0.005% to +4dBu, 1 KHZ
Sensitivity	+1 5dBu ±3dB

Impedances

Microphone Input	1.4KOhm
All Other Inputs	10KOhm
Tape Out	1k0hm
All Other Output	120 Ohm

Equalization

Mono Channel
High	±15dB@ 12Khz
Mid	±15dB Frequency Range 100Hz to BKHz
Low	±1 5dB@80Khz
Stereo Channel
High	±15dB@ 12Khz
High Mid	±15dB@3KHz
Low Mid	±15dB@ 500hz
Low	±1 5dB@80Khz

DSP Section

ND & D/A Converters	24 Bit
DSP Resolution	24 Bit
Type of Effects	Vocal, Small Room, Large Hall, Echo, Echo+Verb, Flanger+Verb, Plate, Chorus GTR, Rotary GTR, Tremolo GTR
Presets	100
Controls	100 Position PRESET Selector (10 Presets, 10 Variations), Mute Switch with Indicator Light

Main Mix Section

Bus Noise	Fader OdB, Mute -82dB (Ref. +4dB), All input channels, Unity Gain -70dB
Max. Output	+22dBu Unbalanced, 1/4" Jades
Aux Sends Max. Outputs	+22dBu Plate, Chorus GTR, Rotary GTR, Tremolo GTR
Aux Returns Gain Range	-co to + 15d B

USB Input

Builds in the USB full speed (1 2Mbps), Supports the USB mass storage class

FAT Analysis

Supports FAT16 and FAT32 / Support VFAT (long file name)

MP3 Decode

Supports Sample Rates SKHz, 16KHz, 32KHz, 11.025KHz, 22.05KHz, 44.1 KHz, 12KHz, 24KHz and 48KHz / Supports bit rate 8 to 320 and VBR (Variable Bit rate) Except free format
