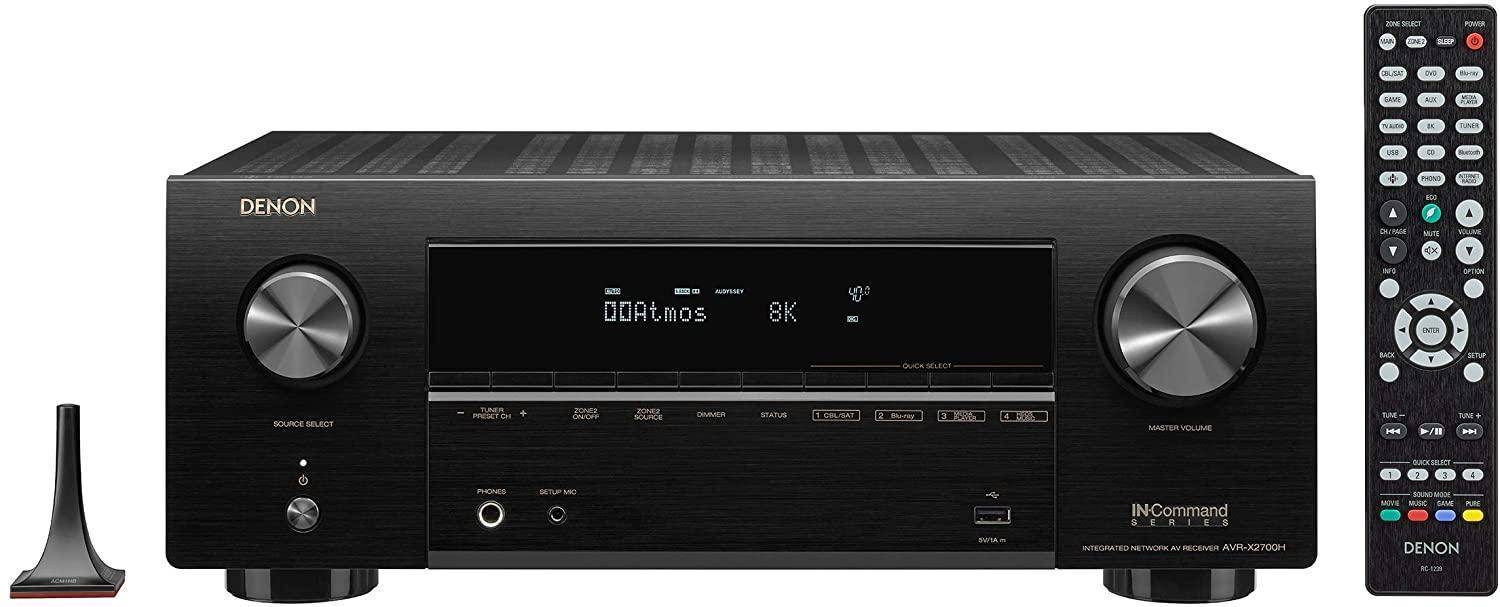

Denon AVR-X1700H 7.2ch 8K AV Receiver

Specifications

• 7 Power Amplifiers


• 80W Power Output (8 Ohms, 20Hz-20kHz, 0.08%THD, 2ch Drive)


• 120W Power Output (6 Ohms, 1kHz, 0.7%THD, 2ch Drive)


• 145W Power Output (6 Ohms, 1kHz, 1%THD, 1ch Drive

General

• Handles speaker impedance between 4 and 16 Ohms


• 200mV Input Sensitivity


• Frequency Response (Direct Mode) 10Hz-100kHz +1, -3dB)


• S/N Ratio: 98dB (IHF-A Weighted, Direct Mode)


• FM/AM Tuner


• Power Supply: 230V AC, 50Hz


• PEAK Power Consumption: 440W


• Idle Power Consumption: 29W (ECO On), 39W (ECO Off)


• 0.1W Standby


• 0.5W CEC Standby


• RC-1227 System Remote Control


• Available in Black

Dimensions

• 434mm Width


• 339mm Depth


• 151mm Height (Antenna Horizontal)


• 215mm Height (Antenna Vertical)


• 8.6kg

Inputs / Outputs

• 6 HDMI Inputs (3 support 8K)


• 1 HDMI Output (eARC)


• 2 Composite Video Inputs


• 1 Composite Video Output


• 1 Phono (MM) Input


• 2 Analogue Stereo Inputs


• 2 Digital TOSLink Optical Inputs


• Front Panel USB Port for mass storage


• 0.2 channel pre-out (Subwoofer)


• 6th + 7th speaker terminals assignable for 2nd zone, Bi-Amp Drive, Speakers A/B, Height Channels, Rear Surround etc


• Front Panel Headphone Output (6.35mm jack)


• Ethernet port


• FM/AM Tuner

Multichannel Surround

• 7.1 channels processing


• DTS: HD Master


• DTS: X


• DTS Neural: X


• DTS Virtual: X


• Dolby TrueHD


• Dolby Atmos


• Dolby Surround


• Dolby Height Virtualization


• Multichannel Stereo


• Dialogue Enhancer

Sound Enhancement

• 7 Discrete Power Amplifiers


• Audyssey Dynamic EQ


• Audyssey Dynamic Volume


• 2 Speaker Setup Presets


• Audyssey MultEQ XT


• Audyssey App Support


• Compressed Audio Restorer

Network

• Gapless playback supported with FLAC, WAV, ALAC, and DSD


• Internet Radio provided by TuneIn


• Remote App for Android, iOS, and Amazon Kindle


• HEOS Multiroom and Streaming


• MP3, WMA, AAC Lossy Format Support


• FLAC, ALAC, WAV Lossless Format support


• DSD Streaming up to DSD5.6


• 24bit, 192kHz supported with FLAC, WAV, and ALAC


• AirPlay2


• Roon Tested


• Spotify Connect


• Tidal


• Deezer


• Amazon Prime Music


• Ethernet port


• Wi-Fi


• Bluetooth


• Bluetooth Headphone Transmission

HDMI

• 6 Rear Inputs (3 support 8K)


• 8K 60Hz


• 4K 120Hz


• 1 HDMI Main Zone Output (up to 8K)


• HDMI to HDMI scaling up to 8K 50/60Hz


• HDCP2.3 support


• CEC


• eARC


• Dolby Vision, HDR10+, Dynamic HDR, and HLG supported


• ALLM


• QMS


• QFT


• VRR


• HDMI Pass Through in Standby Mode

Multi-room CI

• 2 Multi Room Zones


• Zone Audio Sources: HDMI (2ch), Optical (2ch), Network, USB, Analogue


• HEOS Multiroom Integrated


• TV sound grouping


• Main Room Multichannel Audio - Zone stereo downmix


• 2nd Zone Speaker Output assignable


• Web Browser user interface


• IP Control


• App Control

Others

• Audyssey MultEQ XT Auto Speaker Setup by Microphone


• 1 Line FL Display


• Hybrid Graphical User Interface in 9 languages


• Voice control works with Amazon Alexa, Google Assistant, and Apple Siri


• Setup Assistant


• Quick Select Plus


• Firmware update via network or USB


• Variable crossover


• Optimized Bass Redirection


• ECO Mode


• Auto Power Off


• Sleep Timer
